New! IP69K Eliminator SP Stainless Steel Actuator

New! IP69K Eliminator SP Stainless Steel Actuator

Submitted by jprater@wilson… on Tue, 12/18/2018 - 15:53

EDrive is proud to announce the IP69K-rated Eliminator SP Actuator!

This heavy-duty actuator provides a strong, durable, and precise linear actuator for high-end applications in areas requiring frequent exposure to high-pressure, high-temperature washdown. Exterior surfaces are constructed of 316 Stainless Steel and contoured to prevent liquid from pooling.

Long nose bearings provide support for the extended piston. Rugged bronze keys in opposing steel slots provide anti-rotation and counter the tangential forces created during high speed, high frequency, and high load operations.

IP69K is the highest rating against ingress from dirt and liquids making these Eliminator SP actuators ideal for food processing and medical applications that require frequent high-pressure, high-temperature, and caustic washdown.

What is an IP69K rating?

IP69K is the highest rating on the internationally recognized Ingress Protection (IP) scale. The first number in the sequence represents the protection rating against dust and dirt ingress; “6” indicates that the unit is dust tight, allowing no ingress. The second number in the sequence represents the protection rating against liquid ingress followed by the letter designation that indicates that is a high temperature rating; “9K” indicates that the unit is protected against ingress from high-pressure and high-temperature spray at close proximity and from various angles.

Eliminator SPL - Choose EDrive’s 316 Stainless Steel actuator with IP69K + an internal load cell

EDrive’s exclusive internal load cell option is now available with the same IP69K protection. You can “Measure While You Press” with confidence with IP69K protection even in the most challenging environments.

  • IP69K Rated for high-pressure, high-temperature washdown
  • "Measure While You Press" Integrated Load Cell design
  • Contoured 316 Stainless Steel exterior with durable anti-rotation feature
  • Rated thrust up to 25,000 lbf
  • High velocity to 23 in/sec, Strokes to 48 inches
  • 0.002 in/ft standard lead accuracy, 0.0005 in/ft option lead accuracy
Featured Image

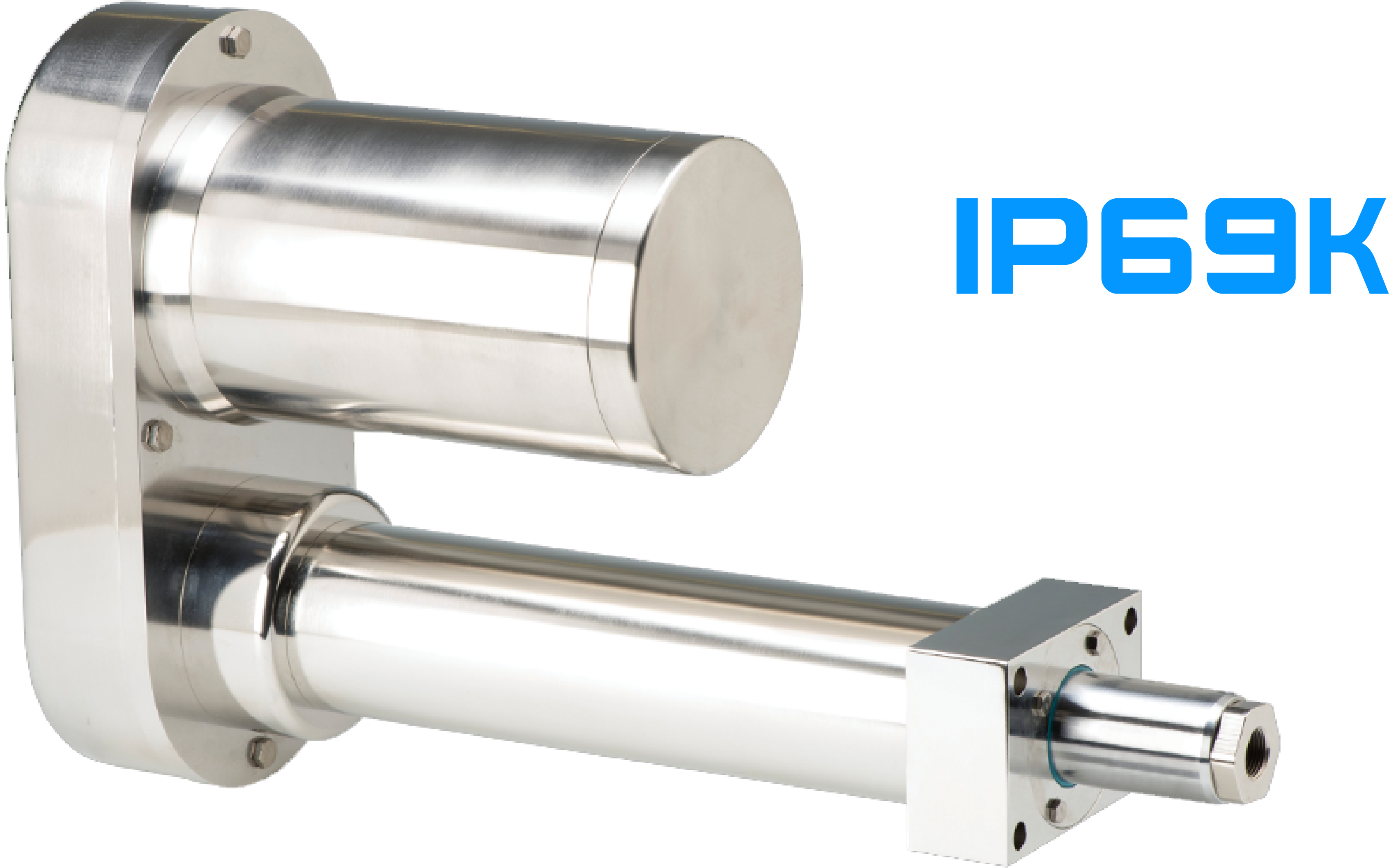

IP69K Stainless Steel Linear  actuator by EDrive
