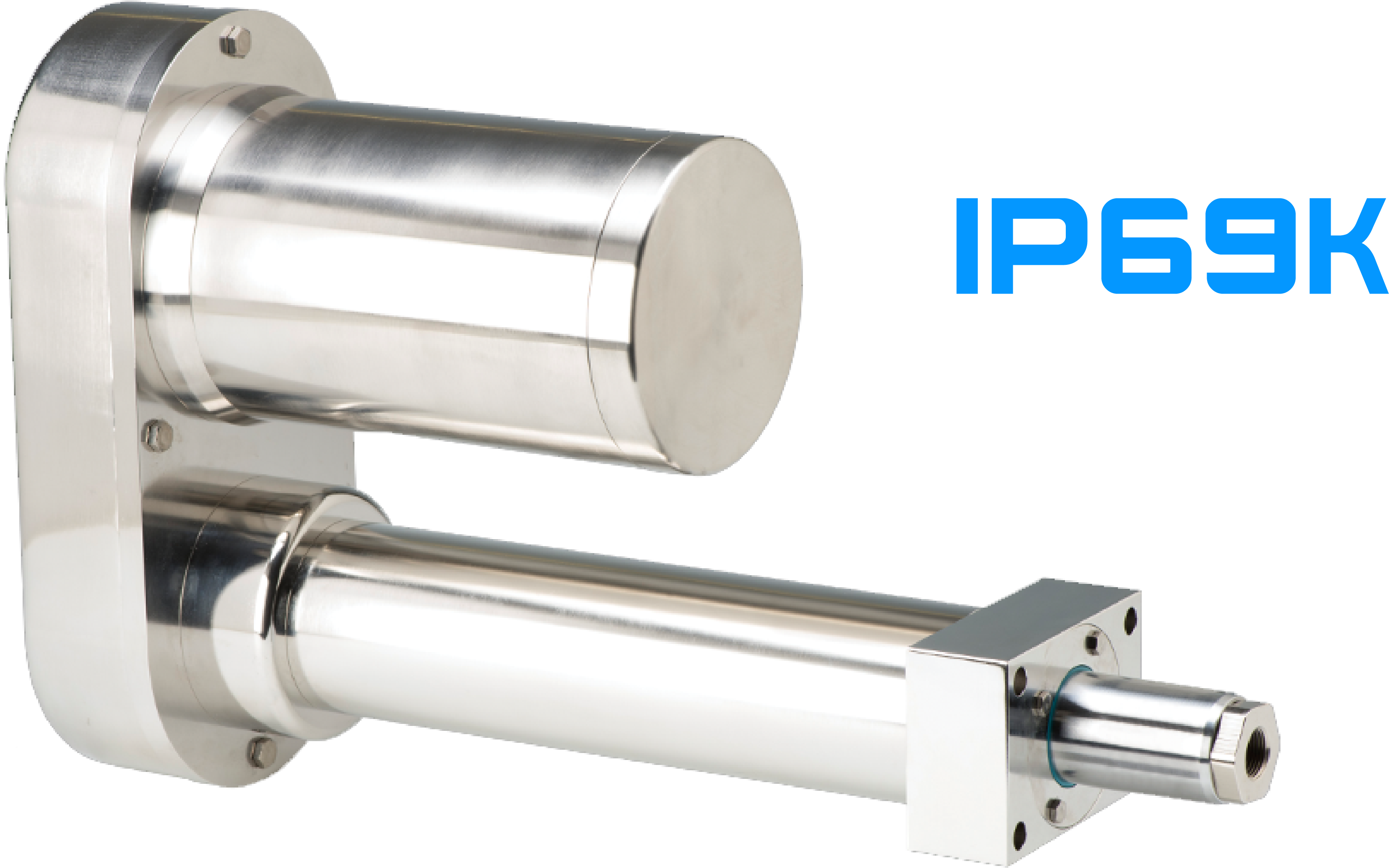

The Eliminator SP offers all the performance advantages of our HD actuator, now with IP69K rating*. Ideal for food and medical grade applications. This 316 Stainless Steel actuator is designed for high-pressure and high-temperature washdown conditions.

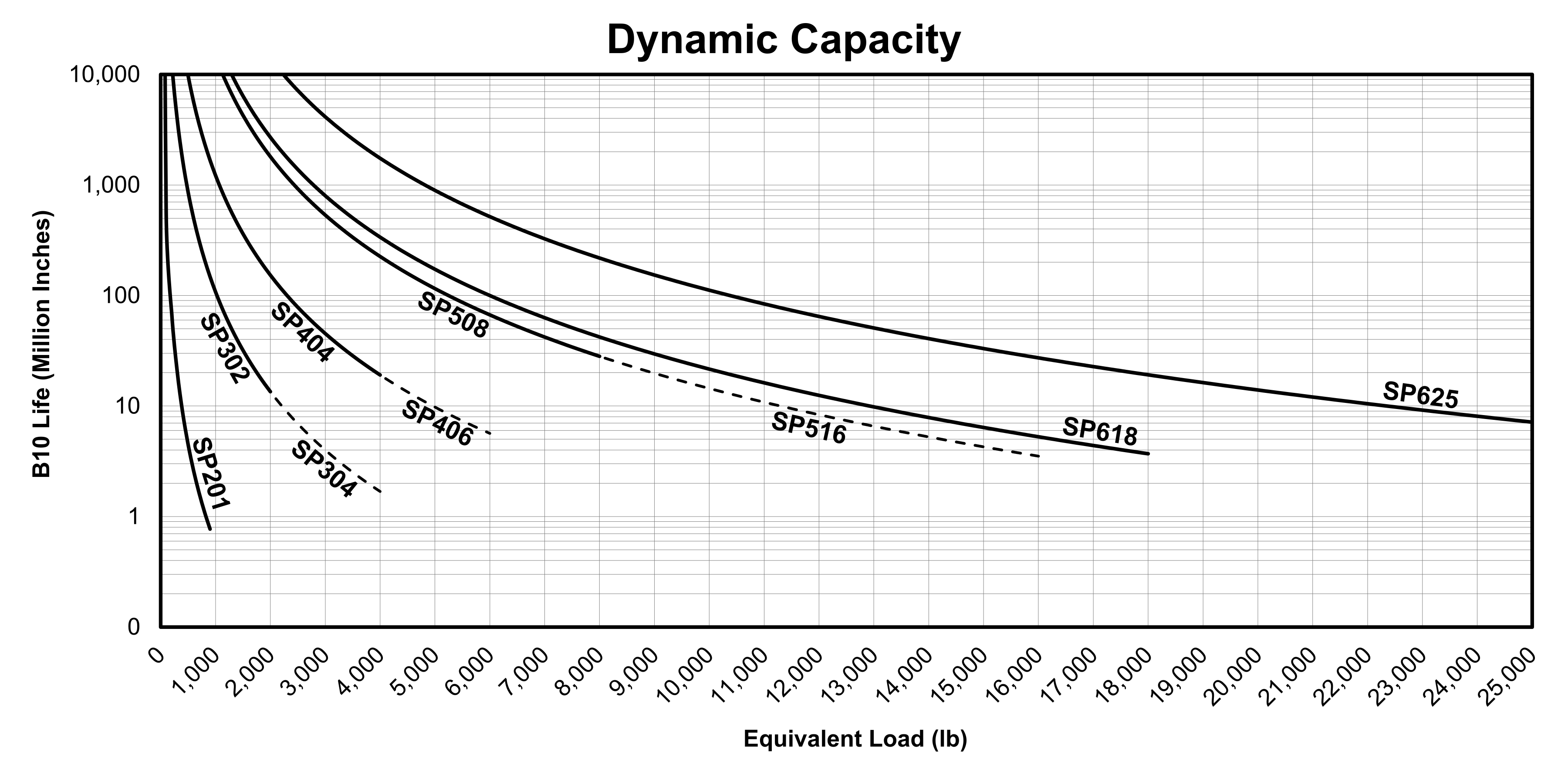

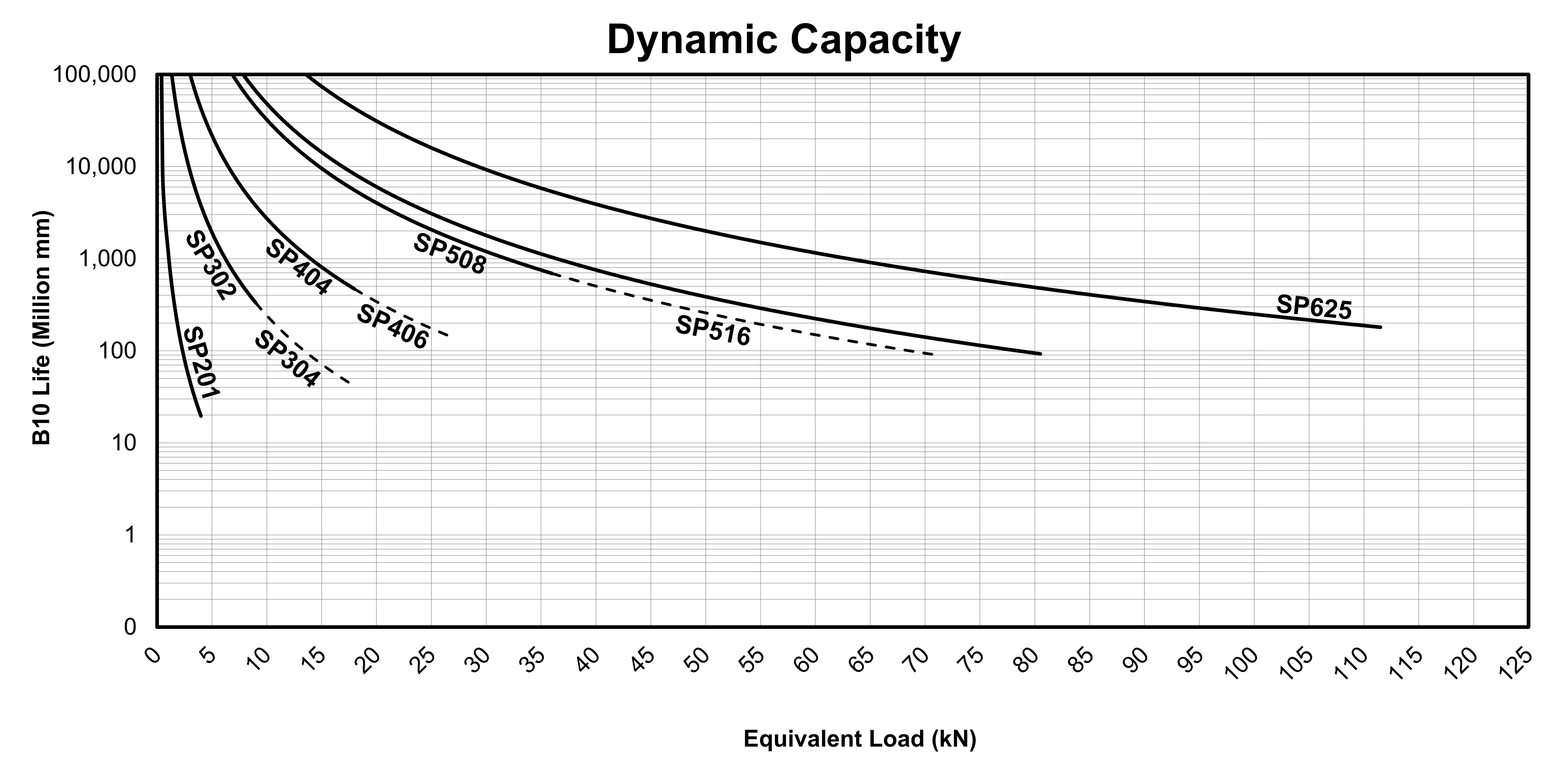

Models | Rated Thrust | Max. Velocity1 | Max. Stroke2 | Frame Size | Screw Lead | Max. Screw Speed1 | Max. Torque At Screw | Dynamic Capacity Per Million Revs | Dynamic Capacity Per Million Inches | Max. Motor Or Gearhead Frame Supported2 | Inertia 1:1 Zero Stroke3 | Inertia 1:1 Per Inch Of Stroke3 | Inertia 2:1 Zero Stroke3 | Inertia 2:1 Per Inch Of Stroke3 | Inertia Inline Zero Stroke3 | Inertia Inline Per Inch Of Stroke3 | Weight "U" Mount Zero Stroke4 | Weight "L" Mount Zero Stroke4 | Weight Per Inch Of Stroke4 |
Units | lbf | in/s | in | in | mm | RPM | in-lbf | lbf | lbf | in | lb-in² | lb-in² | lb-in² | lb-in² | lb-in² | lb-in² | lb | lb | lb |
SP201 | 1000 | 8.0 | 12 | 2.00 | 4 | 3,048 | 28 | 1,529 | 825 | 2.75 | 0.51 | 0.0031 | 0.27 | 0.0008 | 0.04 | 0.0031 | 9 | 7 | 0.93 |
SP302 | 2,000 | 20.0 | 36 | 3.00 | 10 | 3,048 | 139 | 6,490 | 4,760 | 4.25 | 5.63 | 0.0203 | 1.63 | 0.0051 | 0.33 | 0.0203 | 38 | 36 | 1.41 |
SP304 | 4,000 | 20.0 | 36 | 3.00 | 10 | 3,048 | 278 | 6,490 | 4,760 | 4.25 | 4.85 | 0.0203 | 1.46 | 0.0051 | 0.37 | 0.0203 | 38 | 36 | 1.41 |
SP404 | 4,000 | 18.0 | 42 | 4.00 | 10 | 2,743 | 278 | 14,580 | 10,690 | 5.75 | 23.22 | 0.0444 | 4.11 | 0.0111 | 1.96 | 0.0444 | 71 | 65 | 2.39 |
SP406 | 6,000 | 18.0 | 42 | 4.00 | 10 | 2,743 | 418 | 14,580 | 10,690 | 5.75 | 23.22 | 0.0444 | 4.11 | 0.0111 | 1.96 | 0.0444 | 71 | 65 | 2.39 |
SP508 | 8,000 | 14.0 | 48 | 5.00 | 12 | 1,778 | 668 | 31,250 | 24,340 | 8.00 | 139.18 | 0.2646 | 22.64 | 0.0661 | 5.82 | 0.2646 | 154 | 120 | 3.89 |
SP516 | 16,000 | 14.0 | 48 | 5.00 | 12 | 1,778 | 1,337 | 31,250 | 24,340 | 8.00 | 139.27 | 0.2646 | 22.66 | 0.0661 | 5.91 | 0.2646 | 154 | 120 | 3.89 |
SP618 | 18,000 | 9.8 | 48 | 6.00 | 12 | 1,245 | 1,504 | 35,750 | 27,840 | 8.00 | 281.83 | 0.7302 | 43.88 | 0.1826 | 12.19 | 0.7302 | 198 | 182 | 6.16 |
SP625 | 25,000 | 14.4 | 48 | 6.00 | 20 | 1,097 | 3,481 | 52,150 | 48,160 | 8.00 | 294.38 | 1.8524 | 47.01 | 0.4631 | 24.73 | 1.8524 | 156 | 278 | 6.16 |
Models | Rated Thrust | Max. Velocity1 | Max. Stroke2 | Frame Size | Screw Lead | Max. Screw Speed1 | Max. Torque At Screw | Dynamic Capacity Per Million Revs | Dynamic Capacity Per Million Inches | Max. Motor Or Gearhead Frame Supported2 | Inertia 1:1 Zero Stroke3 | Inertia 1:1 Per Inch Of Stroke3 | Inertia 2:1 Zero Stroke3 | Inertia 2:1 Per Inch Of Stroke3 | Inertia Inline Zero Stroke3 | Inertia Inline Per Inch Of Stroke3 | Weight "U" Mount Zero Stroke4 | Weight "L" Mount Zero Stroke4 | Weight Per Inch Of Stroke4 |
Units | kN | mm/s | mm | mm | mm | RPM | Nm | kN | kN | mm | kg-m² (10⁻⁶) | kg-m² (10⁻⁶) | kg-m² (10⁻⁶) | kg-m² (10⁻⁶) | kg-m² (10⁻⁶) | kg-m² (10⁻⁶) | kg | kg | kg |
SP201 | 4.45 | 203 | 305 | 50.8 | 4 | 3,048 | 3.1 | 6.80 | 3.67 | 70 | 148.33 | 0.8952 | 78.75 | 0.2238 | 10.91 | 0.8952 | 4 | 3 | 0.42 |
SP302 | 8.90 | 508 | 914 | 76.2 | 10 | 3,048 | 15.7 | 28.87 | 21.17 | 108 | 1,648.16 | 5.9369 | 477.87 | 1.4842 | 95.60 | 5.9369 | 17 | 16 | 0.64 |
SP304 | 17.79 | 508 | 914 | 76.2 | 10 | 3,048 | 31.5 | 28.87 | 21.17 | 108 | 1,420.65 | 5.9305 | 427.18 | 1.4826 | 107.02 | 5.9305 | 17 | 16 | 0.64 |
SP404 | 17.79 | 457 | 1,067 | 101.6 | 10 | 2,743 | 31.5 | 64.86 | 47.55 | 146 | 6,793.93 | 12.9806 | 1,202.31 | 3.2452 | 574.03 | 12.9806 | 32 | 30 | 1.08 |
SP406 | 26.69 | 457 | 1,067 | 101.6 | 10 | 2,743 | 47.2 | 64.86 | 47.55 | 146 | 6,793.93 | 12.9806 | 1,202.31 | 3.2452 | 574.03 | 12.9806 | 32 | 30 | 1.08 |
SP508 | 35.59 | 356 | 1,219 | 127.0 | 12 | 1,778 | 75.5 | 139.01 | 108.27 | 203 | 40,729.48 | 77.4238 | 6,624.64 | 19.3559 | 1,703.82 | 77.4238 | 70 | 55 | 1.76 |
SP516 | 71.17 | 356 | 1,219 | 127.0 | 12 | 1,778 | 151.0 | 139.01 | 108.27 | 203 | 40,754.98 | 77.4238 | 6,631.01 | 19.3559 | 1,729.32 | 77.4238 | 70 | 55 | 1.76 |
SP618 | 80.07 | 249 | 1,219 | 152.4 | 12 | 1,245 | 169.9 | 159.02 | 123.84 | 203 | 82,476.19 | 213.6915 | 12,840.60 | 53.4229 | 3,566.01 | 213.6915 | 90 | 83 | 2.80 |
SP625 | 111.21 | 366 | 1,219 | 152.4 | 20 | 1,097 | 393.3 | 231.97 | 214.23 | 203 | 86,146.23 | 542.1018 | 13,758.11 | 135.5254 | 7,236.04 | 542.1018 | 71 | 126 | 2.80 |

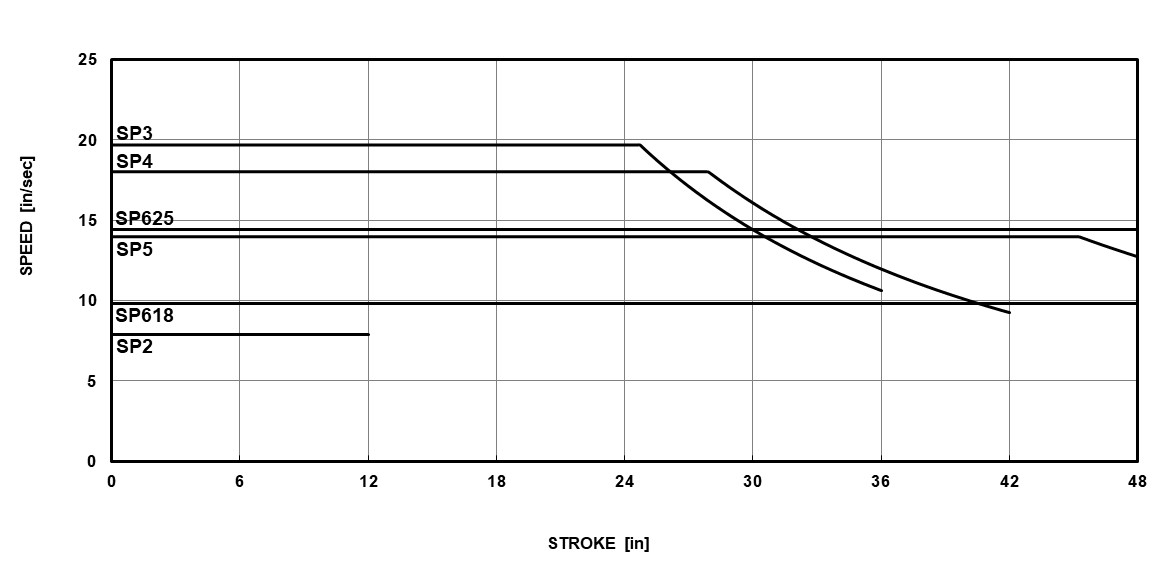

1. Maximum velocity and maximum screw speed may not be achievable at maximum stroke.
2. Larger Motor or Gearhead Frames and longer stroke lengths are available upon request.
3. All inertia values are at the input shaft and are representative of typical pulleys, bushings, couplers, etc. Actual values may vary due to motor selection.
4. Weight values are for reference only and vary depending on configuration.
"U" Parallel offset configuration
"L" Inline configuration
