Heavy Duty, High Speed, High Force

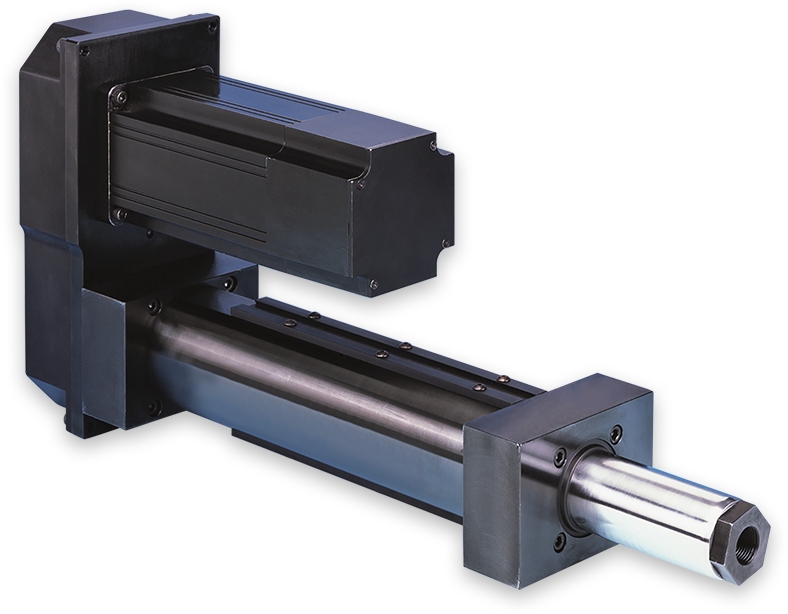

The Eliminator HD Heavy Duty ball screw linear actuator provides strong, durable, and precise linear motion for industrial automation. The HD was designed to replace hydraulic actuators and thus “eliminate” many associated concerns, such as noise and fluid leakage, while providing high load, high speed, and high accuracy linear motion that is controllable, repeatable, and easy to adjust.

Specifications

Models	Rated Thrust	Max. Velocity¹	Max. Stroke²	Frame Size	Screw Lead	Max. Screw Speed¹	Max. Torque At Screw	Dynamic Capacity Per Million Revs	Dynamic Capacity Per Million Inches	Max. Motor Or Gearhead Frame Supported²	Inertia 1:1 Zero Stroke³	Inertia 1:1 Per Inch Of Stroke³	Inertia 2:1 Zero Stroke³	Inertia 2:1 Per Inch Of Stroke³	Inertia Inline Zero Stroke³	Inertia Inline Per Inch Of Stroke³	Weight "U" Mount Zero Stroke⁴	Weight "L" Mount Zero Stroke⁴	Weight Per Inch Of Stroke⁴
Units	lb_f	in/s	in	in	mm	RPM	in-lb_f	lb_f	lb_f	in	lb-in²	lb-in²	lb-in²	lb-in²	lb-in²	lb-in²	lb	lb	lb
HD201	1000	8.0	12	2.00	4	3,048	28	1,529	825	2.75	0.51	0.0031	0.27	0.0008	0.04	0.0031	8	6	0.87
HD302	2,000	20.0	36	3.00	10	3,048	139	6,490	4,760	4.25	5.63	0.0203	1.63	0.0051	0.33	0.0203	29	22	1.33
HD304	4,000	20.0	36	3.00	10	3,048	278	6,490	4,760	4.25	4.85	0.0203	1.46	0.0051	0.37	0.0203	29	22	1.33
HD404	4,000	18.0	42	4.00	10	2,743	278	14,580	10,690	5.75	23.22	0.0444	4.11	0.0111	1.96	0.0444	63	49	2.25
HD406	6,000	18.0	42	4.00	10	2,743	418	14,580	10,690	5.75	23.22	0.0444	4.11	0.0111	1.96	0.0444	63	49	2.25
HD508	8,000	14.0	48	5.00	12	1,778	668	31,250	24,340	8.00	139.18	0.2646	22.64	0.0661	5.82	0.2646	155	105	3.40
HD516	16,000	14.0	48	5.00	12	1,778	1,337	31,250	24,340	8.00	139.27	0.2646	22.66	0.0661	5.91	0.2646	155	105	3.40
HD618	18,000	9.8	48	6.00	12	1,245	1,504	35,750	27,840	8.00	281.83	0.7302	43.88	0.1826	12.19	0.7302	207	152	5.50
HD625	25,000	14.4	48	6.00	20	1,097	3,481	52,150	48,160	8.00	294.38	1.8524	47.01	0.4631	24.73	1.8524	214	158	5.50
HD740	40,000	14.1	48	7	20	1,097	5,575	52,150	48,160	10.88	401.85	1.8707	64.87	0.4677	96.29	1.8707	373	318	7.41

Models	Rated Thrust	Max. Velocity¹	Max. Stroke²	Frame Size	Screw Lead	Max. Screw Speed¹	Max. Torque At Screw	Dynamic Capacity Per Million Revs	Dynamic Capacity Per Million Inches	Max. Motor Or Gearhead Frame Supported²	Inertia 1:1 Zero Stroke³	Inertia 1:1 Per Inch Of Stroke³	Inertia 2:1 Zero Stroke³	Inertia 2:1 Per Inch Of Stroke³	Inertia Inline Zero Stroke³	Inertia Inline Per Inch Of Stroke³	Weight "U" Mount Zero Stroke⁴	Weight "L" Mount Zero Stroke⁴	Weight Per Inch Of Stroke⁴
Units	kN	mm/s	mm	mm	mm	RPM	Nm	kN	kN	mm	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg-m² (10⁻⁶)	kg	kg	kg
HD201	4.45	203	305	50.8	4	3,048	3.1	6.80	3.67	70	148.33	0.8952	78.75	0.2238	10.91	0.8952	4	3	0.40
HD302	8.90	508	914	76.2	10	3,048	15.7	28.87	21.17	108	1,648.16	5.9369	477.87	1.4842	95.60	5.9369	13	10	0.60
HD304	17.79	508	914	76.2	10	3,048	31.5	28.87	21.17	108	1,420.65	5.9305	427.18	1.4826	107.02	5.9305	13	10	0.60
HD404	17.79	457	1,067	101.6	10	2,743	31.5	64.86	47.55	146	6,793.93	12.9806	1,202.31	3.2452	574.03	12.9806	28	22	1.02
HD406	26.69	457	1,067	101.6	10	2,743	47.2	64.86	47.55	146	6,793.93	12.9806	1,202.31	3.2452	574.03	12.9806	28	22	1.02
HD508	35.59	356	1,219	127.0	12	1,778	75.5	139.01	108.27	203	40,729.48	77.4238	6,624.64	19.3559	1,703.82	77.4238	70	47	1.54
HD516	71.17	356	1,219	127.0	12	1,778	151.0	139.01	108.27	203	40,754.98	77.4238	6,631.01	19.3559	1,729.32	77.4238	70	47	1.54
HD618	80.07	249	1,219	152.4	12	1,245	169.9	159.02	123.84	203	82,476.19	213.6915	12,840.60	53.4229	3,566.01	213.6915	94	69	2.49
HD625	111.21	366	1,219	152.4	20	1,097	393.3	231.97	214.23	203	86,146.23	542.1018	13,758.11	135.5254	7,236.04	542.1018	97	72	2.49
HD740	177.93	366	1,219	177.8	20	1,097	630	231.97	214.23	276	117,598.41	547.4429	18,983.77	136.8680	28,179.77	547.4429	169	144	3.36

^1. Maximum velocity and maximum screw speed may not be achievable at maximum stroke.
^2. Larger Motor or Gearhead Frames and longer stroke lengths are available upon request.
^3. All inertia values are at the input shaft and are representative of typical pulleys, bushings, couplers, etc. Actual values may vary due to motor selection.
^4. Weight values are for reference only and vary depending on configuration.
^"U" Parallel offset configuration
^"L" Inline configuration

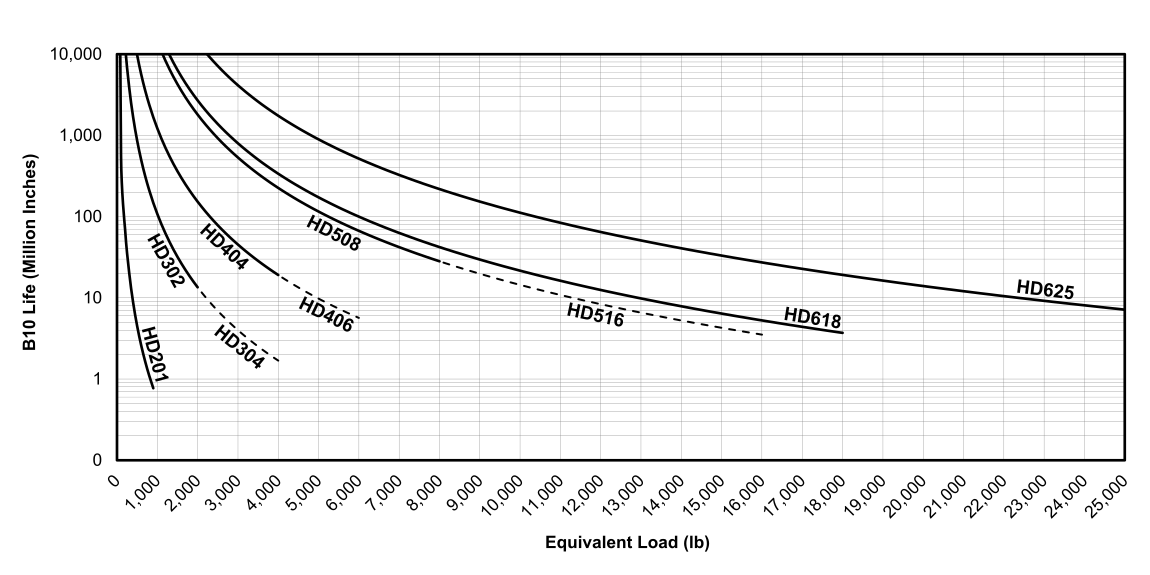

Life vs. Load

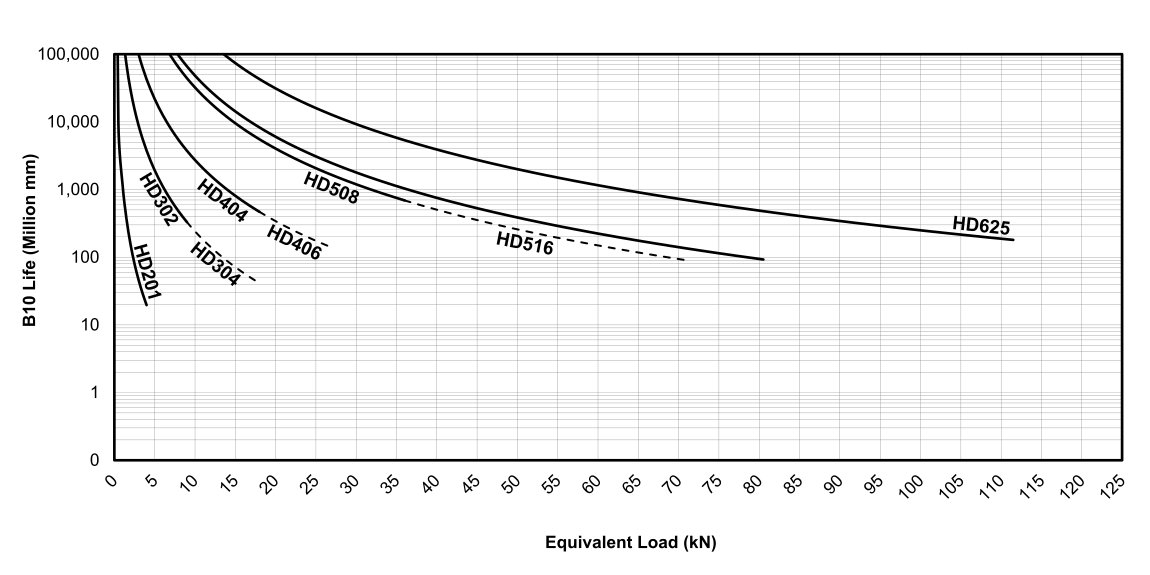

Life vs Load Chart for EDrive HD Actuators (Metric)

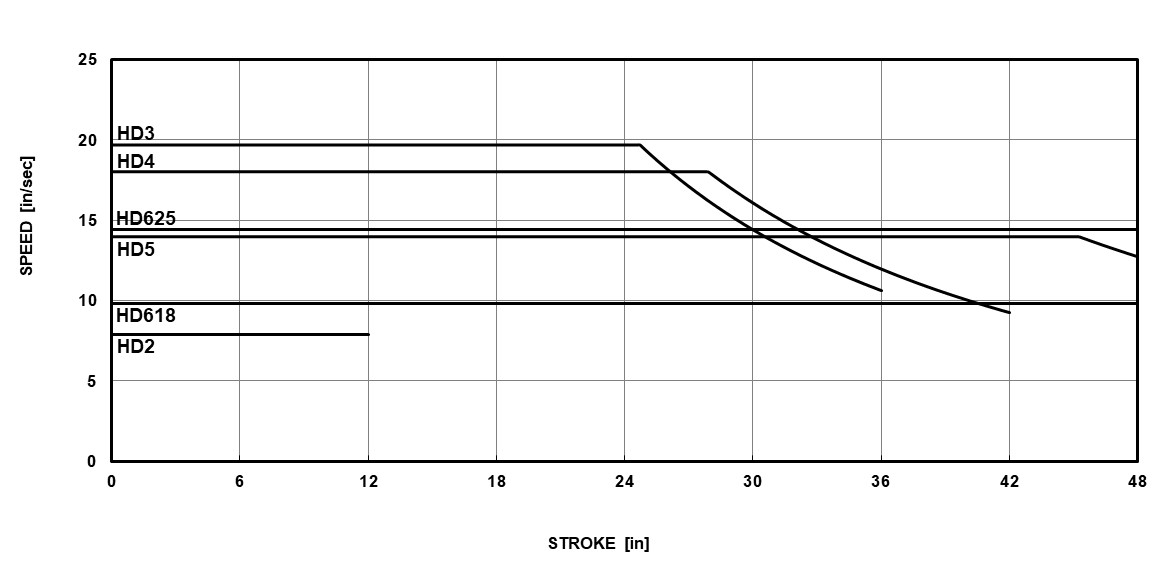

Speed vs. Stroke
